The AYRO Vanish

The AYRO Vanish is a utility low-speed electric vehicle (LSEV) with a lightweight architecture to limit vehicle weight and maximize payload capacity.

AYRO Vanish
Desert background of blues and grays

An Innovative Utility LSEV

The Vanish is a purpose-built, innovative, and highly customizable LSEV unlike any other on the market to support campus mobility, last-mile delivery and micro distribution needs.

vanish-panelbed
vanish-built-to-work
Light-Duty & Heavy-Duty Applications Built to Work
The lightweight architecture of the AYRO Vanish is designed to limit vehicle weight and maximize payload capacity. The vehicle offers highly adaptable bed configurations to support both light- and heavy-duty needs in a variety of applications.
right-size-vanish
Built to Work LIGHT & HEAVY-DUTY APPLICATIONS
The lightweight architecture of the Vanish is designed to limit vehicle weight and maximize payload capacity. The vehicle offers highly adaptable bed configurations to support a plurality of applications.

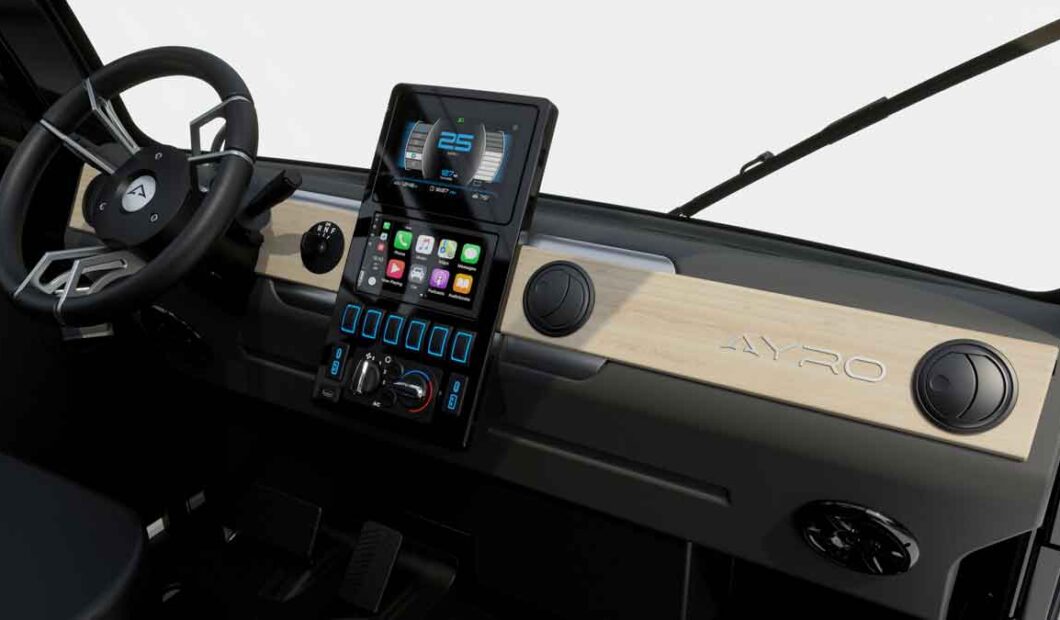

ayro-vanish-interior
Right Size Solution LEAVE VIRTUALLY NO MARK
The Vanish addresses a market that falls between full size trucks and golf and utility carts. With the payload capacity of a pickup truck, it’s still compact enough to navigate narrow pathways and double doors.
tire-tread
Thoughtful Design UNIQUELY AMERICAN
Every detail was considered, from frame to tires, technology to seats, and the result is a utility LSEV with components primarily sourced in North America, with vehicle assembly and integration in our Round Rock, Texas facility.
ayro-vanish-charging-port
Fleets Simplified SUSTAINABILITY
The flexibility of adaptable bed configurations offers campuses and facilities a new way to manage their fleets with fewer vehicles, less maintenance, and fewer long-term costs while meeting sustainability goals.

Configurations

2023 AYRO Vanish low speed electric vehicle
2023 AYRO Vanish low speed electric vehicle
2023 AYRO Vanish low speed electric vehicle
2023 AYRO Vanish low speed electric vehicle
2023 AYRO Vanish low speed electric vehicle
2023 AYRO Vanish low speed electric vehicle
2023 AYRO Vanish low speed electric vehicle
2023 AYRO Vanish low speed electric vehicle

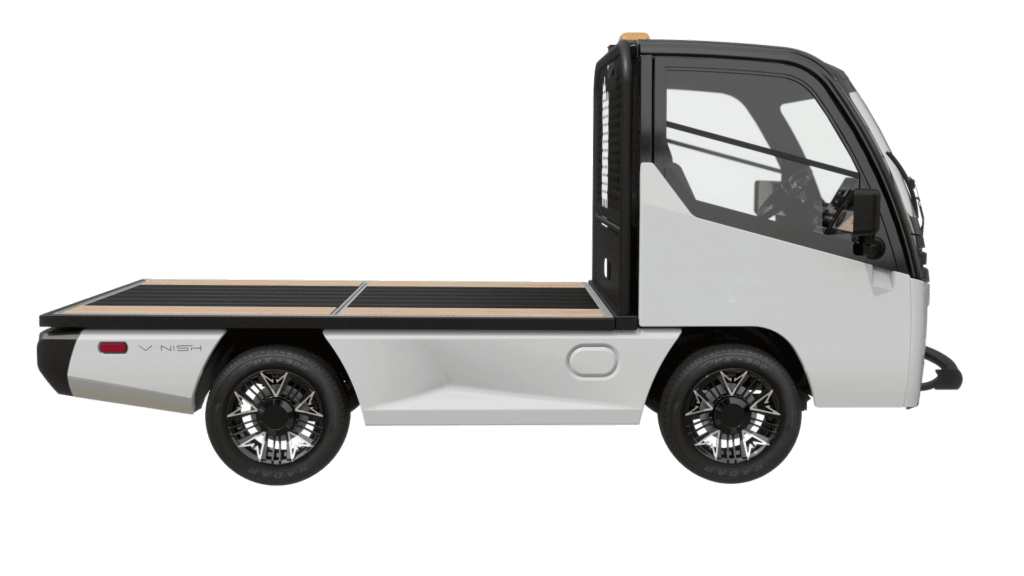

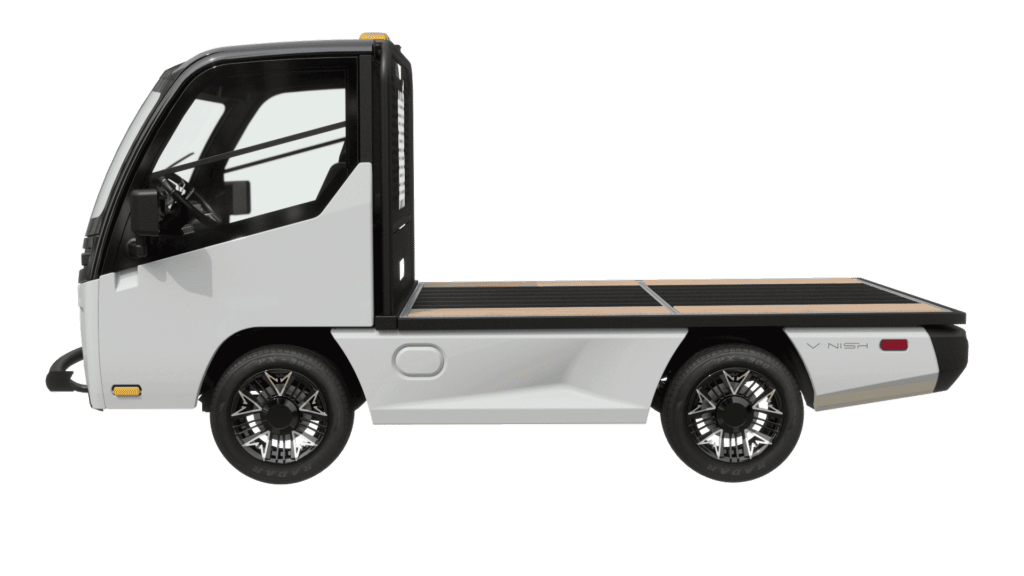

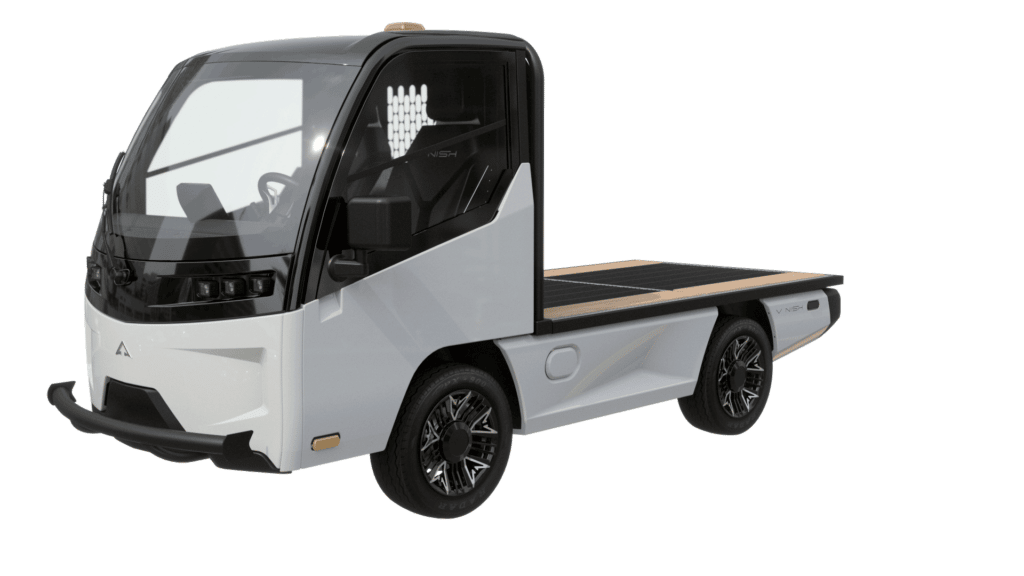

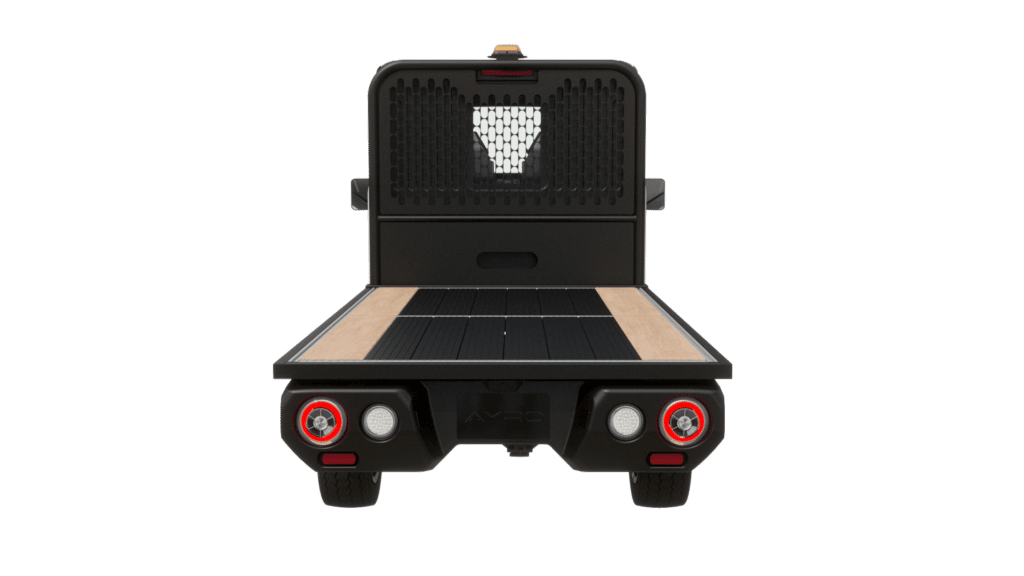

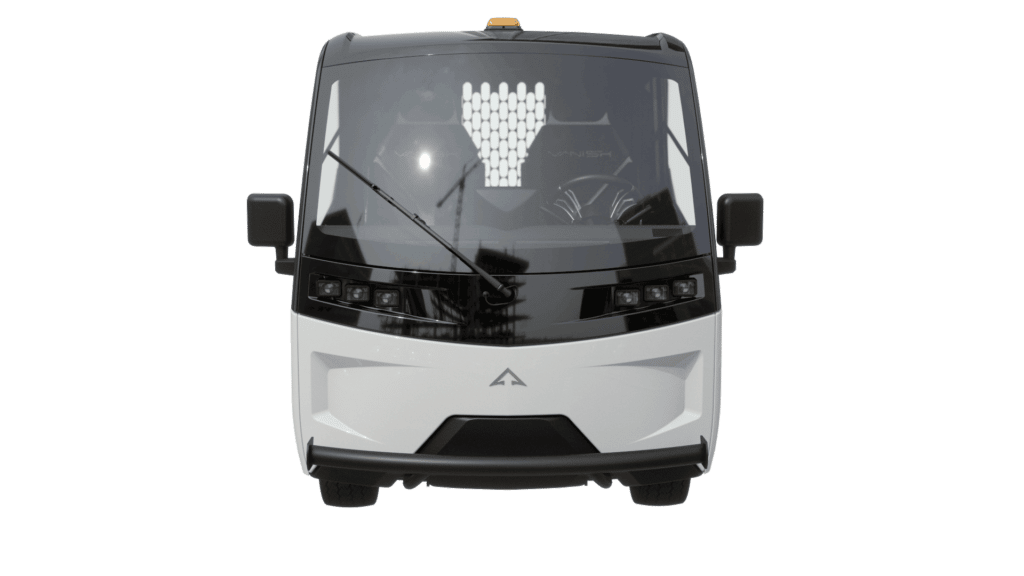

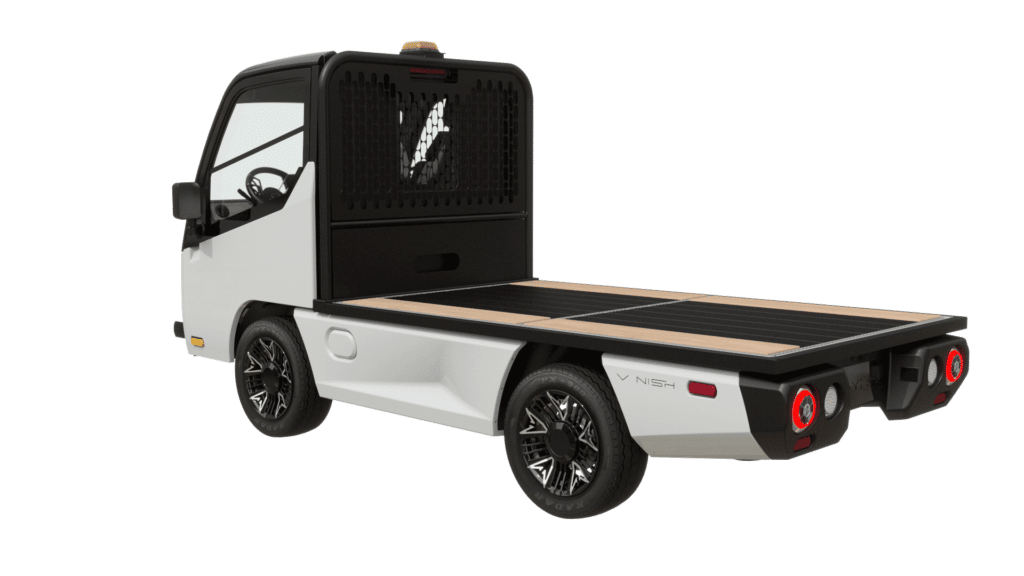

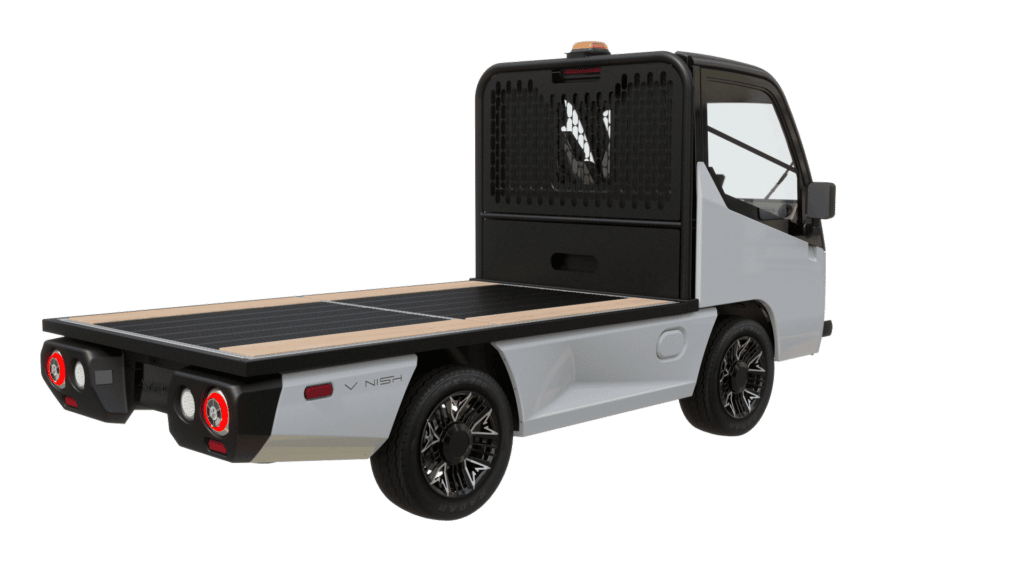

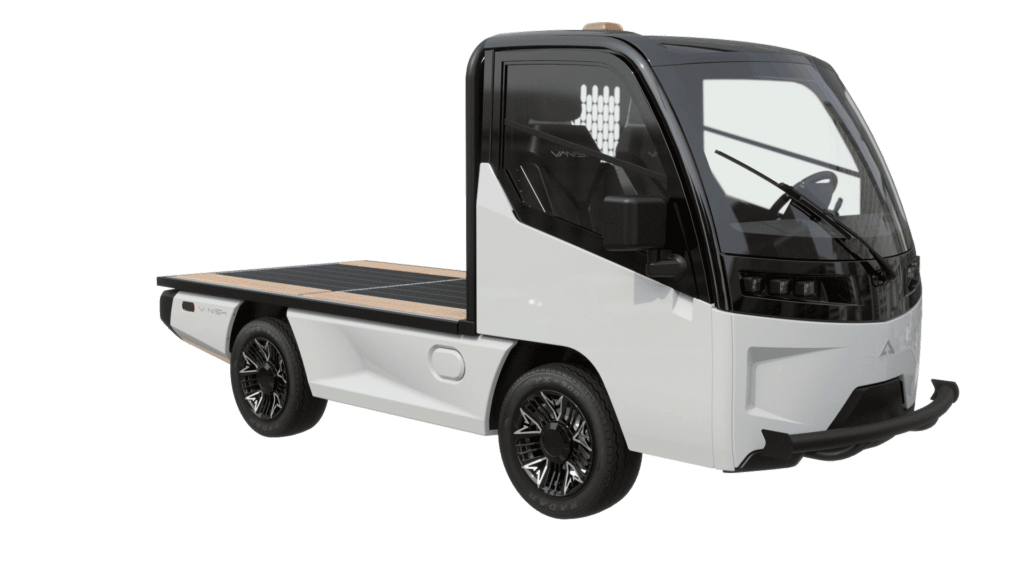

Flatbed The Flatbed is the core platform for the AYRO Vanish designed to support a multitude of applications and uses.
2023 AYRO Vanish low speed electric vehicle with truck bed
2023 AYRO Vanish low speed electric vehicle with truck bed
2023 AYRO Vanish low speed electric vehicle with truck bed
2023 AYRO Vanish low speed electric vehicle with truck bed
2023 AYRO Vanish low speed electric vehicle with truck bed
2023 AYRO Vanish low speed electric vehicle with truck bed
2023 AYRO Vanish low speed electric vehicle with truck bed
2023 AYRO Vanish low speed electric vehicle with truck bed

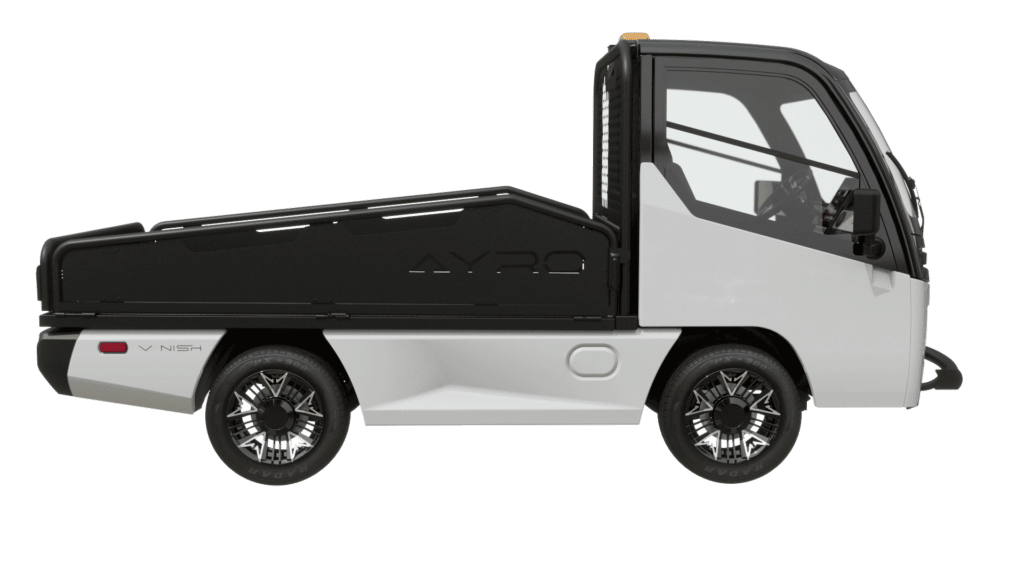

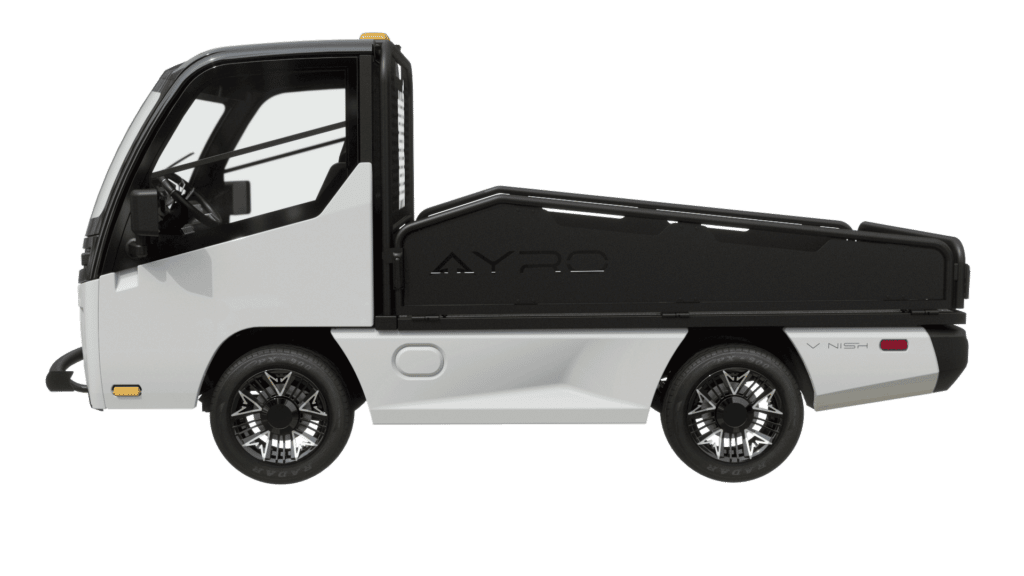

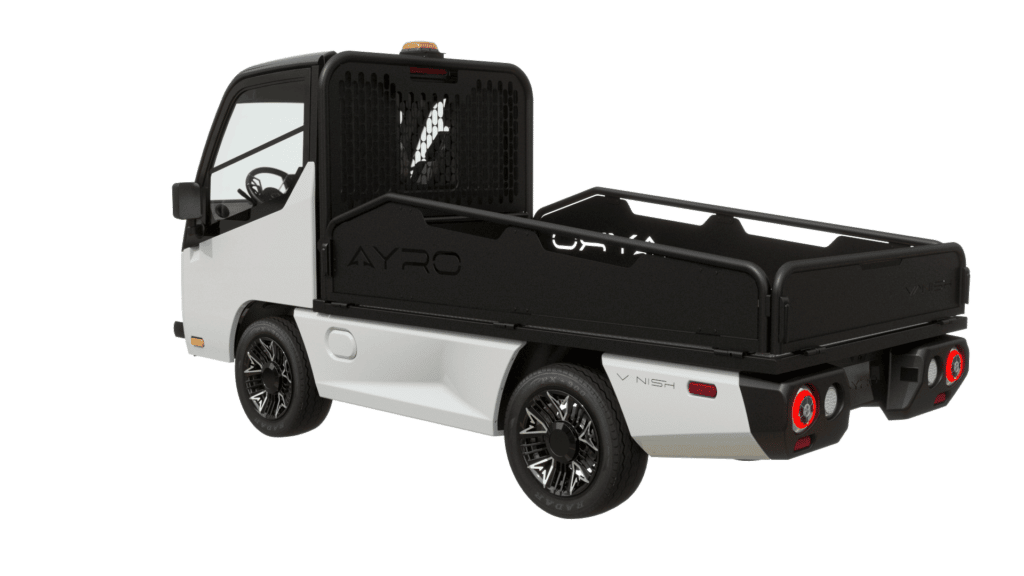

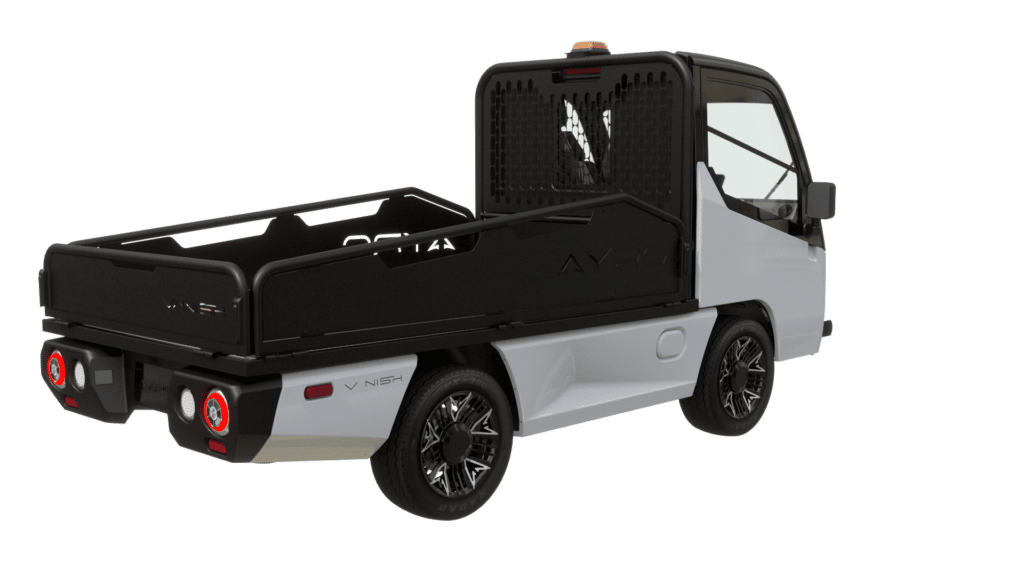

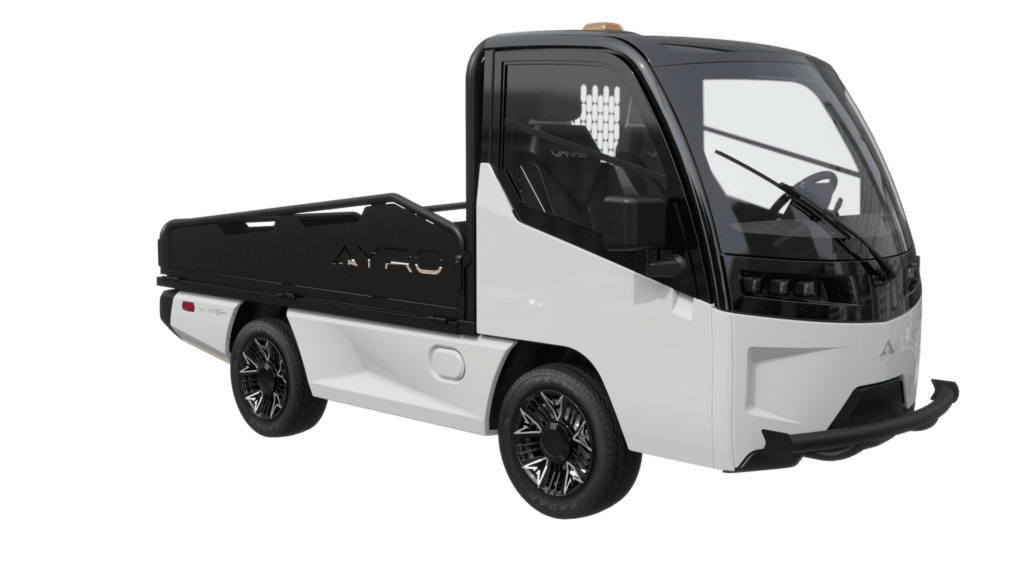

Pickup Bed The Pickup Bed configuration offers fold down bed sides and tailgate to support both light-duty and heavy-duty applications.
2023 AYRO Vanish low speed electric vehicle with van box
2023 AYRO Vanish low speed electric vehicle with van box
2023 AYRO Vanish low speed electric vehicle with van box
2023 AYRO Vanish low speed electric vehicle with van box
2023 AYRO Vanish low speed electric vehicle with van box
2023 AYRO Vanish low speed electric vehicle with van box
2023 AYRO Vanish low speed electric vehicle with van box
2023 AYRO Vanish low speed electric vehicle with van box

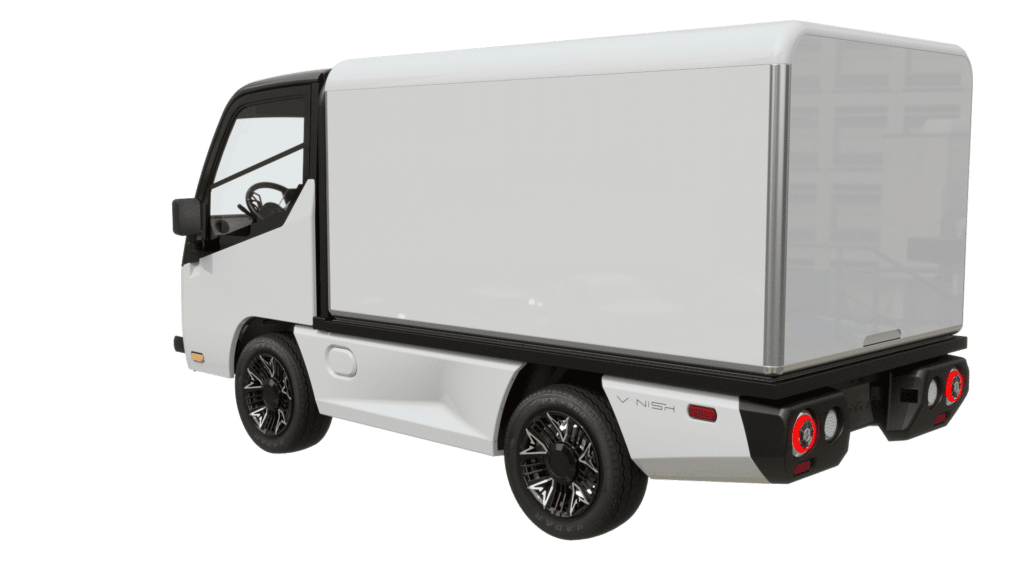

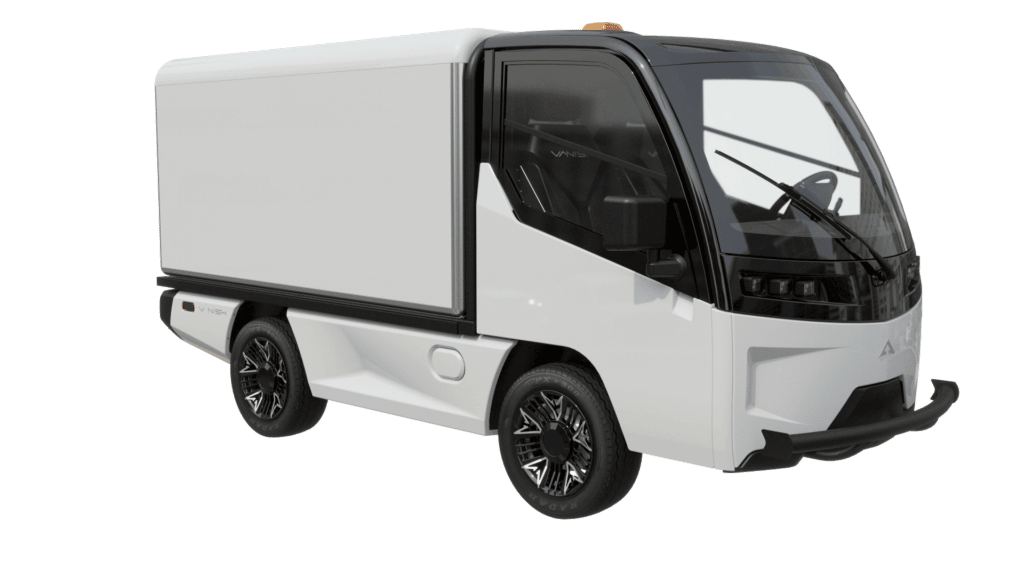

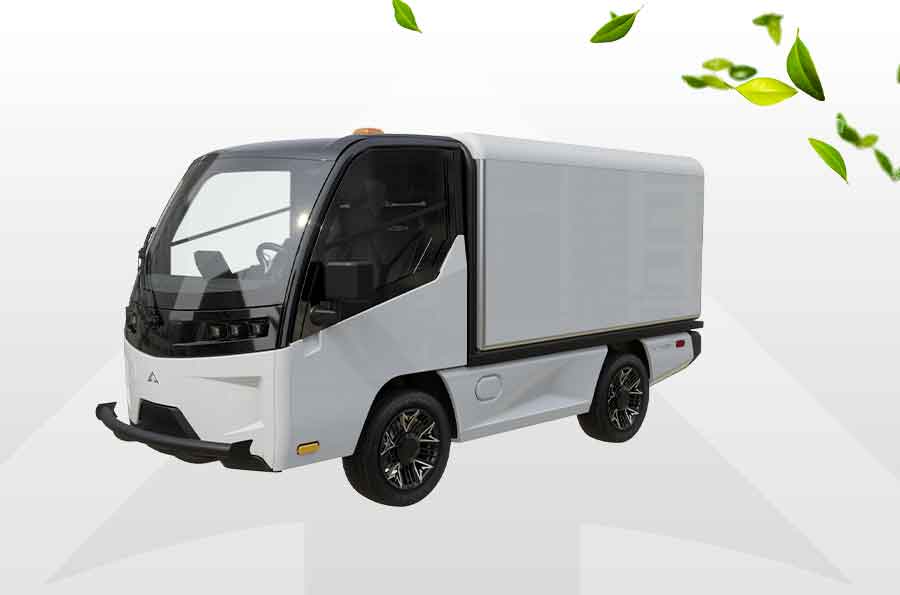

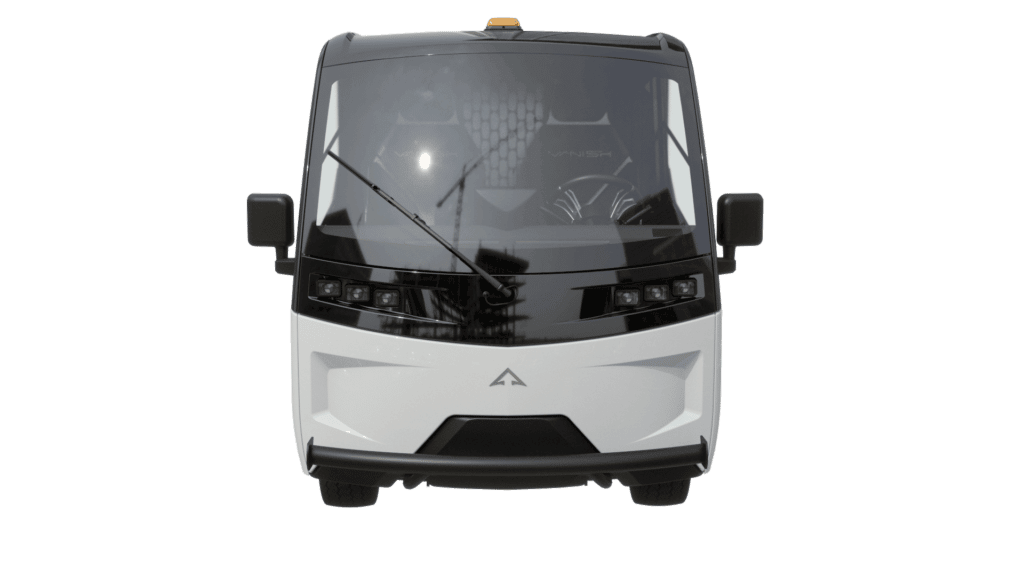

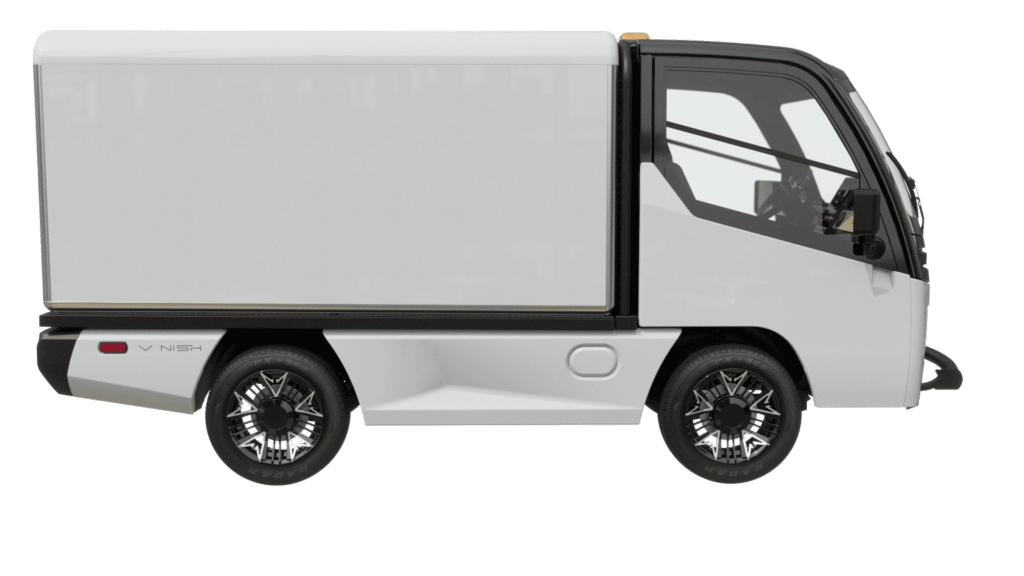

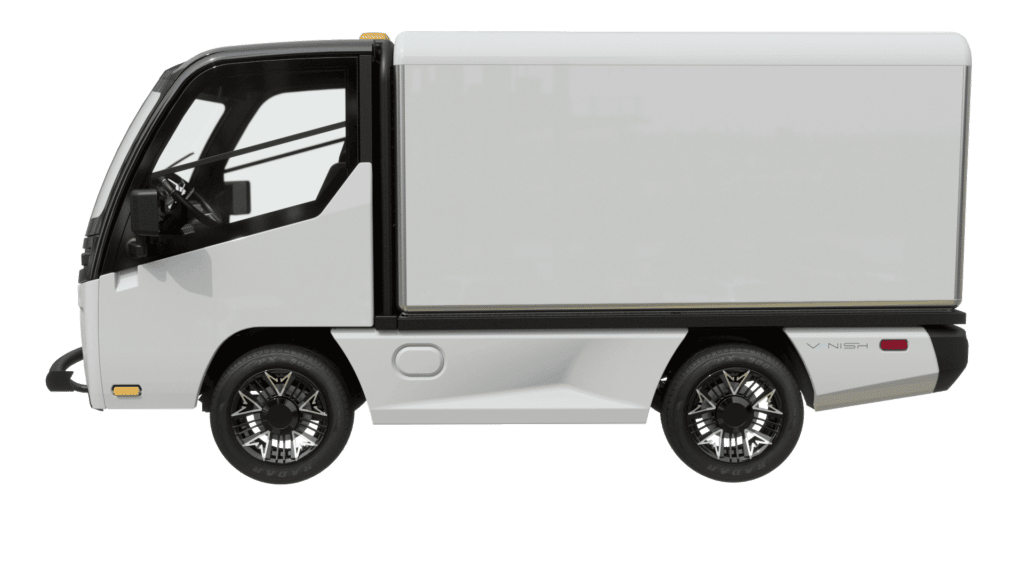

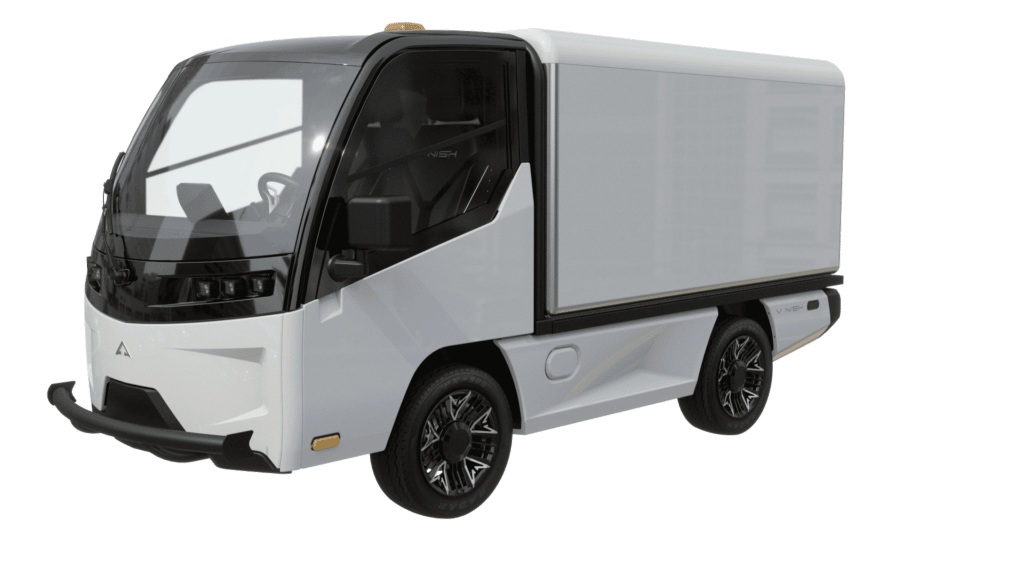

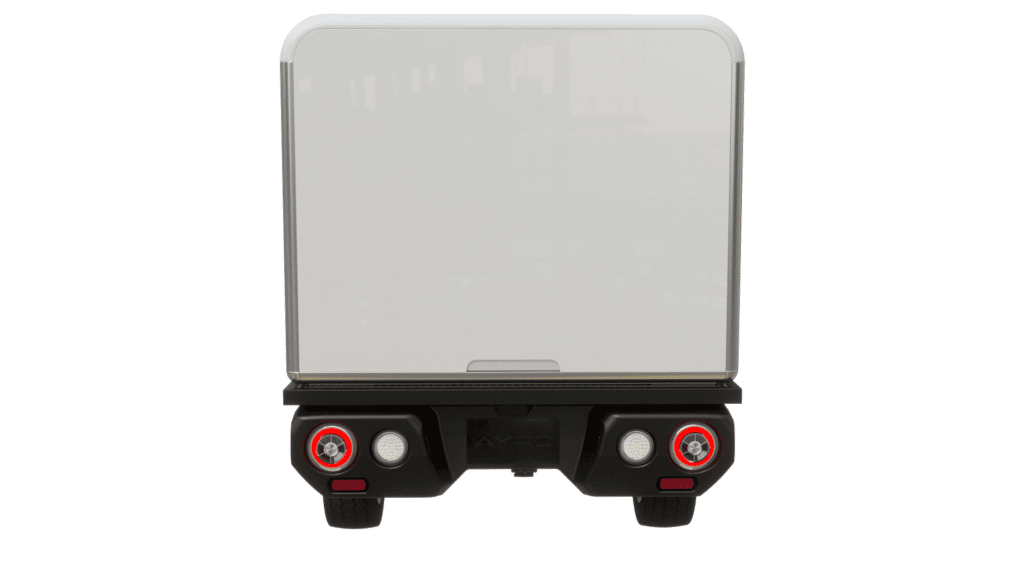

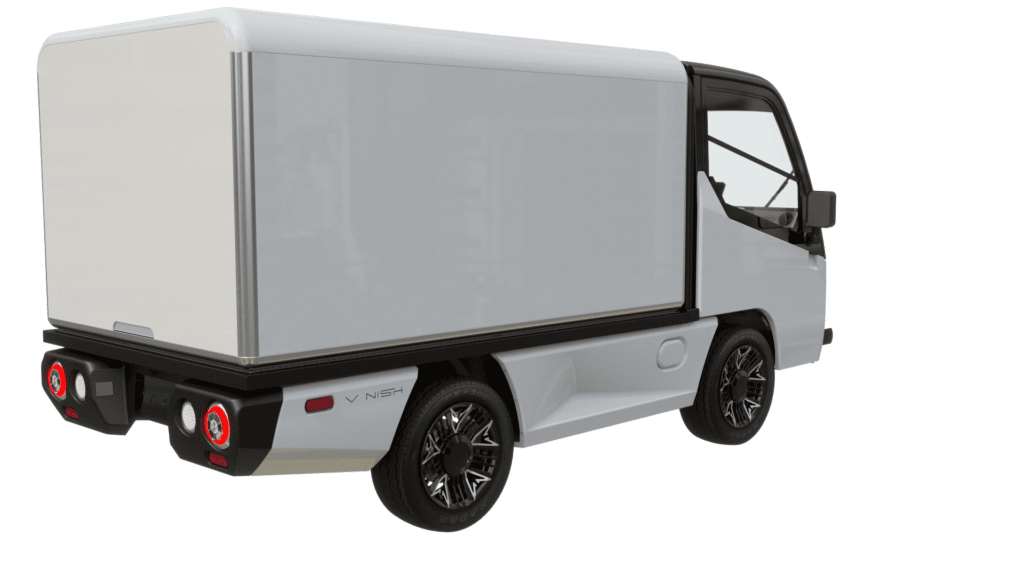

Van Box The Van Box configuration offers powered and non-powered van box options with securable storage and capabilities to serve hot and cold food and beverages on campuses, resorts and event venues.

Performance

Top Speed
LSV
Non LSV

Up to 25 MPH
Up to 20 MPH
Acceleration
0 to 25 MPH ≤ 6 seconds
Gradeability
Maintains 25 MPH on 30% grade* (for 1/4th mile)

*Contingent on battery configuration and charge levels
Turning Radius
22 ft/ 6.71 m/ 264 inches
Range
Greater than 50 miles* based on a full charge

*Actual range may vary based on several factors, including temperature, terrain, vehicle loading, use, and configuration.
Motor
Axial flux electric motor
Drivetrain
Rear wheel drive
Battery
Lithium Ion
Charging
Standard 110V / 20-amp outlet and is also configured for J1772 charging
OPERATING TEMPERATURES
STANDARD:
W/ COLD WEATHER PACKAGE:

-20° C/ -4° F to 58° C/ 137° F
-30° C/ -22° F to 58° C/ 137° F
Additional Features
Battery Thermal Management System
Cold Weather Package w/auxiliary heater*

* Enables vehicle operation down to -29 C/-20 F with cold weather assist

Specs & Dimensions

Length
155 inches
Width
<60 inches with mirrors folded
Height
<76 inches
Towing Capacity
1,150 lbs.
Max Tongue Weight
115 lbs.
Wheels
15″ AYRO branded wheels
Tires
15″ All-Season SchlagernullTM tires
Payload Capacity
LSV
Non-LSV

1,200 lbs.*
1,800 lbs.*

*Payload is dependent on final vehicle configurations.
GROSS VEHICLE WEIGHT RATING
LSV
NON-LSV

3,000 lbs.
3,600 lbs.

Safety

Brakes
Regenerative braking w/ all-wheel disc brakes and hill descent control
Front Suspension
Independent adjustable coil-over shock absorbers
Rear Suspension
Solid e-axle w/ shock absorbers
Steering
Electric Power-Assisted Steering (EPAS)
Additional Features
AYROSync
Forward and reverse sounds for pedestrian safety
Rear view camera
Strobe light (LSEV)

Comfort & Options

Heater and defroster
Air conditioning (R1234YF Refrigerant)*
Bluetooth Stereo compatible with Android Auto and Apple CarPlay
7″ Color Digital Instrument cluster / Driver display
Option *

Select features and options may not be available on all vehicles or trims. Final vehicle features, specifications and performance metrics are subject to change.


Elevating LSEVs

Capability
The Vanish offers the highest power electric motor and the highest capacity batteries in this segment. That means more power and greater capability.
Safety
Thanks to standard front and rear hydraulic disc brakes, the Vanish has more efficient braking power with shorter stopping distances, with or without payload.
Technology
High resolution digital display

AYROSync Fleet Management Software – Scalable telemetrics enabling efficient, collaborative
deployment
Design
Designed from the ground up, the Vanish offers the highest cargo volume of any vehicle in this segment. It has the payload capacity of a pickup truck but is still compact enough to fit through standard double doors. Add in the premium, high-quality finishes, like bomber seats and bamboo dash, you have an elevated LSEV that is unlike any other in the market.

Design isn’t all about looks, AYRO vehicles are built with automotive-grade components and share virtually identical components and subsystems on tailored chassis architectures. The result is a quality vehicle with a longer lifespan and simplified fleet maintenance.
Blue grainy textured background for the timeline block
One vehicle, a plurality of adaptable bed configurations.

Simplifying Fleets

Ladder Rack (Landscaping)
Bamboo Drop Sides
Cargo Bed
Compressor
Drop Sides
Upfitted Food Box
Heater Cooler Ducting
Ramps
Stairs
Stake Bed
Toolbox (Mobile Mechanic)
